Network Sniffing on a Budget: Malware Detection with Suricata

Most people think intrusion detection needs powerful servers and commercial software. But Suricata runs fine on low-end x86 boxes, especially if you keep it passive. This project outlines how I used a spare thin client with Alpine Linux to sniff mirrored traffic from my firewall and catch signs of malware using Emerging Threats.

Hardware & Network Setup

The system is an old fanless mini-PC with 2 Intel NICs and 2 GB RAM. I installed Alpine Linux (persistent disk install), assigned one NIC as a management interface, and the other as a dedicated sniffing interface connected to a mirror port (SPAN) on my router.

The firewall/router mirrors all LAN+WAN traffic to this second NIC, letting Suricata see everything without interfering.

This setup also works in a virtual machine with two NICs, one configured by DHCP, and one left “just up” for passive monitoring or PCAP replays.

Installing Suricata on Alpine

Suricata is available directly from Alpine’s community repository:

apk add suricata suricata-openrc

This installs the engine, configuration in /etc/suricata/, rule files under /var/lib/suricata/rules/, and service support via OpenRC.

Fetching Rules

Download the Emerging Threats open ruleset without overwriting the defaults:

curl -o /var/lib/suricata/rules/emerging-all.rules https://rules.emergingthreats.net/open/suricata/emerging-all.rules

Then, edit /etc/suricata/suricata.yaml and modify the rule list:

rule-files:
  - suricata.rules
  - emerging-all.rules

This extends the detection surface with thousands of community-contributed signatures for malware, botnets, suspicious DNS, phishing, and more.

Configuring Suricata

Make sure the sniffing interface (e.g. eth1) is up but not configured:

ip link set eth1 up

In /etc/suricata/suricata.yaml, configure af-packet for passive packet capture:

af-packet:
  - interface: eth1
    cluster-id: 99
    cluster-type: cluster_flow
    defrag: yes

Limit Suricata’s outputs to what you actually want to inspect:

outputs:
  - eve-log:
      enabled: yes
      filetype: regular
      filename: /var/log/suricata/eve.json
      types:
        - alert:
            metadata: yes
        - http
  - fast:
      enabled: yes
      filename: /var/log/suricata/fast.log

Starting the Service

Enable and start Suricata:

rc-update add suricata
rc-service suricata start

If everything is set correctly, it will begin passively processing traffic on eth1.

Testing Alerting (SID 2100498)

A quick way to confirm that Suricata is working is to trigger rule SID 2100498 from the Emerging Threats ruleset. It alerts on any response containing uid=0(root).

Start watching the alerts:

tail -f /var/log/suricata/fast.log

Then, from any browser or terminal on your LAN:

curl http://testmynids.org/uid/index.html

You should see output like:

[1:2100498:7] GPL ATTACK_RESPONSE id check returned root [**] [Classification: Potentially Bad Traffic] [Priority: 2] {TCP} 18.245.175.66:80 -> 192.168.x.x:54918

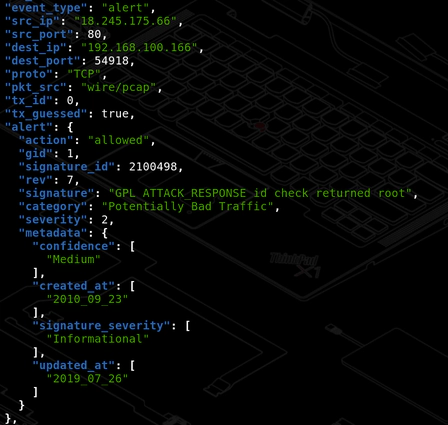

Or the JSON form in /var/log/suricata/eve.json:

"signature": "GPL ATTACK_RESPONSE id check returned root",
"category": "Potentially Bad Traffic",
"severity": 2

This confirms Suricata is capturing mirrored traffic and detecting threats using the provided rule set.

Monitoring Real Traffic

Once deployed, Suricata writes alerts to /var/log/suricata/eve.json and /var/log/suricata/fast.log. To inspect live alerts:

tail -f /var/log/suricata/eve.json | jq 'select(.event_type == "alert")'

You’ll see entries like:

• ET MALWARE
• ET CNC
• ET POLICY
• ET TROJAN

These cover known exploit kits, malware callbacks, tunneling, DNS abuse, and other threats.

Final Thoughts

Suricata turns a cheap Alpine box into a passive intrusion detection system that’s dead silent and effective. Combined with a mirror port and strong ruleset, it gives you visibility into your network without needing to be inline or disruptive.

In my case, this setup flagged:

• An IoT camera connecting to random IPs in foreign ASNs
• A Windows PC hitting typo-squatted domains
• Misconfigured smart devices leaking traffic over HTTP
